1. Electronically operated bypass mode;
2. Electronically operated gastight closing valves;
3. Fast and easy NBC Cell changing;
4. NBC Cell changing ability during operation;
5. User friendly touch screen interface (optional);
6. Remote control integration (optional);
7. High shock protection

Product Description

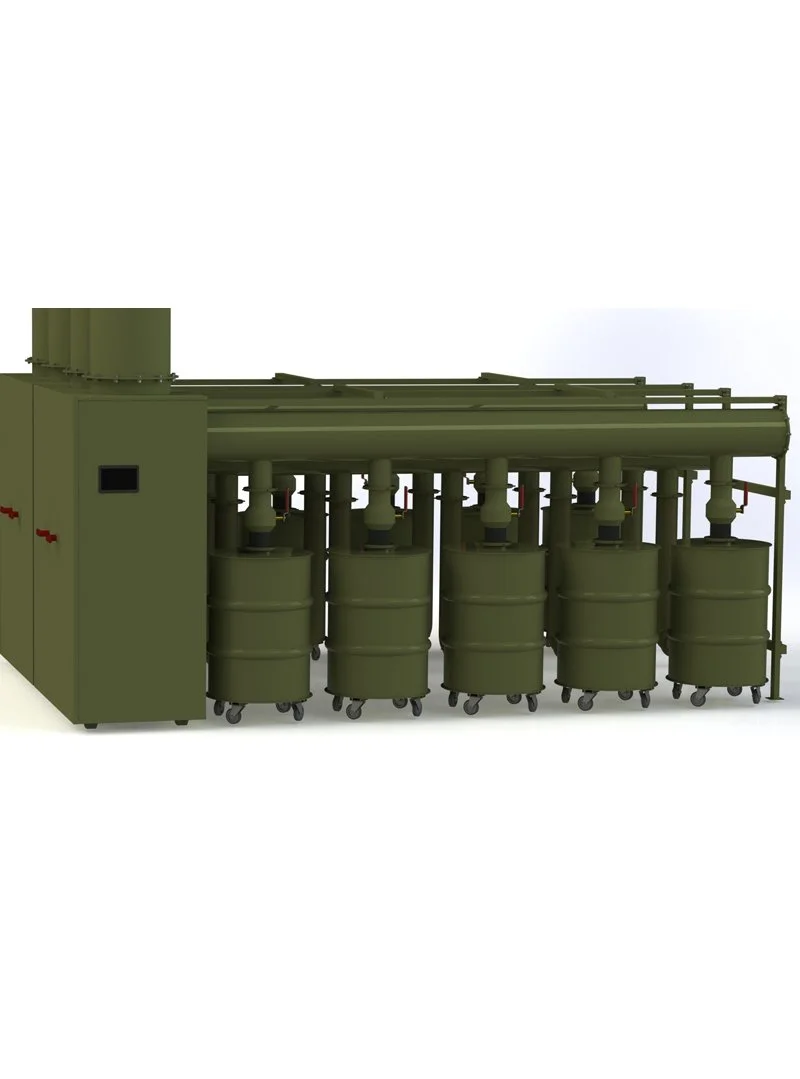

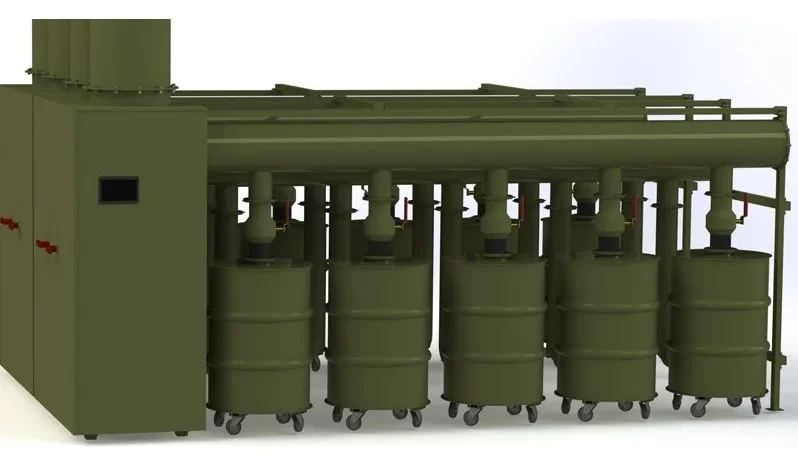

The CBRN Air Filtration Station CBRNX10 is widely used for NBC protection in Civil Defence and military shelters for filtration of Nuclear Fallout and Biological and Chemical Warfare agents. The CBRN Air Filtration Station CBRNX10 is designed to optimize efficiency/ floor space ratio in the HVAC and Air Handling plant rooms by providing maximum filtering efficiency.

Specifications:

The CBRNX10 Air Filtration Station is a high-efficiency particulate aerosol (HEPA H14) filter and an Activated and Impregnated Carbon gas adsorption filter enclosed in steel containers (NBC cells) and providing a three-stage filtration of the air intake. Aerosol and particle filtration followed by gas adsorption. The filter is enclosed in a rigid gastight container made of steel. Container design ensures shock and blast resistance of the NBC cell. An advanced carbon packing and compression system are applied to guarantee that the carbon beds retain their integrity and tightness. NBC cells composed of layers of prefilters, HEPA element and activated carbon compressed in the way to guarantee that beds retain their integrity. Whole NBC system designed to retain integrity and tightness even in extreme usage/ conditions.

Technical Data:

1. Nominal airflow 4500 m3/h
2. Nominal Pressure Drop (compensated by internal air flow amplifier) 1400 Pa
3. Power consumption up to 7 kW
4. Power supply 400V 3 phase 50 Hz
5. Weight of Activated Carbon 500 kg
6. Weight of the NBC Cell 167 kg
7. Weight of the CBRNX10 Air Filtration Station 3850 kg
8. Height of the CBRNX10 Air Filtration Station 2170 mm
9. Width of the CBRNX10 Air Filtration Station 4850 mm
10. Deep of the CBRNX10 Air Filtration Station 3050 mm
